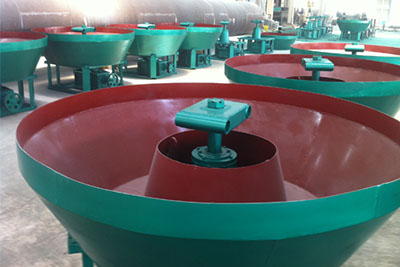

Wet Pan Mill

Wet Pan Mill

Input size:<25mm
Rotate Speed:13-22r/min
Powder:5.5-25kw
Weight:5-14.5t
Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver.

Introduction

The wet pan mill, also called gold grinding machine and the wheel grinding machine, is mainly used for crushing materials including
 all kinds of ores and other materials in dry or wet way widely used in cement, silicate products, new building materials,
refractory materials, chemical fertilizer, non-ferrous metal and glass ceramics. Materials that can be crushed
 by a ball mill can crushed by a grinding machine. The grinding machine is the ideal and efficient
device for ore dressing of small and medium-sized enterprises
 with the advantages of convenient installation, less investment and production fee and high output.


Working principle :

 The driving force from generator to gearbox is transmitted by texrope, and drive texrope to crush so as to make the grinding roller rotate clockwise.
 Raw materials in the water basin could be mixed up evenly with the rotation of the grinding roller. At the same time, the materials could be crushed
with the grinding between the grinding roller and the grinding millstone. After being crushed again and again to an set fineness, the materials flow with the water

Advantages:Inquiry > >

1 .wet pan mill is a new energys aving grinding equipment designed by domestic processing machinery experts after
 absorbing the newest grinding technology home and abroad. It not only improves the productivity and crushing ratio,
but also expand the application range. It performs an excellent job in secondary crushing, finely crushing and super finely crushing
2 .The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.
3.The ores and water are evenly mixed, which makes the pulp density and other indexes stable.


Technical Parameters:Inquiry > >

Model Specification Input size
(mm)
Rotate Speed
(r/min)
Powder
(kw)
Weight
(t)
1600A 1600×400×200×500±20mm   20-22 25KW 14.5
1500A 1500×350×200×460±20mm   20-22 22KW 13.5
1500B 1500×350×150×460±20mm   20-22 22KW 12.3
1500C 1500×300×150×420±20mm   20-22 22KW 11.3
1400A 1400×250×150×350±20mm   16-18 18.5kw 8.5
1400B 1400×250×150×350±20mm <25mm 21-23 18.5kw 8.5
1350A 1350×250×150×350±20mm   16-18  18.5kw 8
1350B 1350×250×150×350±20mm   21-23 18.5kw 8
1300A 1300×250×150×350±20mm   16-18 15kw 7.5
1300B 1300×250×150×350±20mm   21-23 15kw 7.5
1200A 1200×200×80×250±20mm   17-19 7.5kw 5.5
1200B 1200×200×80×250±20mm   23-25 7.5kw 5.5
1100A 1100×200×80×250±20mm   17-19 7.5kw 5
1100B 1100×200×80×250±20mm   23-25 7.5kw 5
1000 1000×200×80×250±20mm   13-15 5.5kw 4.5
