Shaking table

Shaking table

Capacity:0.5-1.2t/h

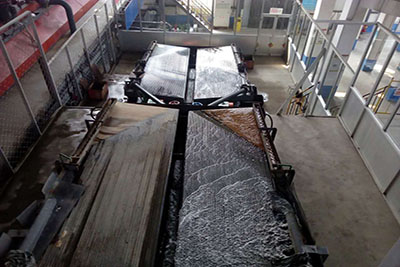

Shaking table which is one gravity separation machine can be widely applied in separating minerals, especially for separating gold and coal.Shaking table is mainly composed of bed head, electromotor, adjusting gradient device, bed surface, ore chute, water chute, rifle bar and lubricating system.It is widely applied in the classification of tin, tungsten, gold, silver, lead, zinc, iron, manganese, tantalum, niobium, titanium, etc.

Introduction

gold shaking table is widely used for sorting tungsten ore. Its main function is desulfurization sorting the rough and concentrate mixture after tungsten
ore gravity separating. (Such as rough concentrate sorted by jig and shaking table). Beneficiation particle size is ranging from 2mm to 0.074mm.
The separating effect is especially for tungsten ore with a variety of sulfide minerals. It has the following advantages compared with the gold table :
 it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.

Advantages:Inquiry > >

1.Characterized by high rich ore ratio, high separating efficiency. 2.Keep table surface operate balanced even though changing cross fall and stroke.
3.The shaking table consists of machine head, motor, adjustable slope structure, bed surface, feeding chute, water tank, bed strip and lubrication system.
4.The final concentrated ore and gangue can be obtained once.
5.Easiness to take charge and convenient adjustment.

Technical Parameters:Inquiry > >

Specification  L-S(6-S) Water quantity (t/h) 0.4-0.8
 Stroke(mm) 10-30 Surface size of table(mm) 152×1825×4500
 Times/min 240-360 Motor(kw) 1.1
Landscape angle(o) 0-8  Capacity (t/h) 0.5-1.2
Feed particle(mm) 2-0.074 Weight (kg) 1012
Feed ore density(%) 15-30 Overall dimensions (mm) 5454×1825×1242
