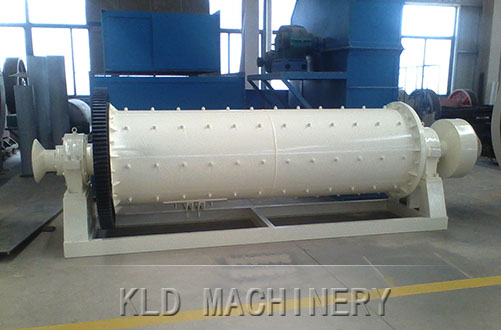

Overflow ball mill

Overflow ball mill

Feeding size≤25mm
Capacity:0.65-90t/h
It is widely used in ore beneficiation plants, cement industry, refractory industry, chemical industry, etc.The overflow type ball mill is used to grinding materials in wet condition. Compared with dry process ball mill, the biggest difference is --- its end cover is cone shaped. On the end cover there is only one wave lining plate. The biggest advantage is that it can dress low grade magnetic iron ore with high-precision.

Get Price Send Message

Introduction

overflow ball grinding mill is an efficient tool for fine powder grinding. Ball mill is often used for grinding silica sand. The overflow ball grinding mill is used to
 grind many kinds of mine and other materials, or to select the mine. overflow ball grinding mill is widely used in building material, chemicalindustry, etc.
There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.
Working principle

The material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual
 pieces of grinding media that mix and crush the product into fine powder over a period of several hours. Obviously, the longer the ball mill runs,
the smaller the powder will be. Ultimate particle size depends entirely on how hard the ground material is, and how long the overflow ball grinding mill runs.

Advantages：Inquiry > >

1. Easy and safe operation
2. Low invest, high return
3 .Stable performance
4 .Even product size
5 . Low energy consumption


Technical Parameters:Inquiry > >

Type Cylinder speed
(r/min)		 Weight
(t)		 Feeding size
(mm)		 Particle size
(mm)		 Capacity
(t/h)
Motor power
(kw)		 Weight
(t)
Ф900×1800 36～38 1.5 ≤20 0.075-0.89 0.65-2 18.5 4.6
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 5.6
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 15.6
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 24.7
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 28
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 32
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 34
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 36
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Ф2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 50
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 48.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 52.8
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 54
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 56
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 54
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 65
Ф2700×4000 20.7 40 ≤25 0.074-0.4 12-80 400 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 12-90 430 102
Ф3200×4500 18 65 ≤25 0.074-0.4 According to
technological
conditions		 800 137
