Energy-saving ball mill

Energy-saving ball mill

Production capacity:0.65-615t/h
Feeding size:≤ 25mm
Output size:0.075-0.4
Energy saving ball mill  is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Introduction

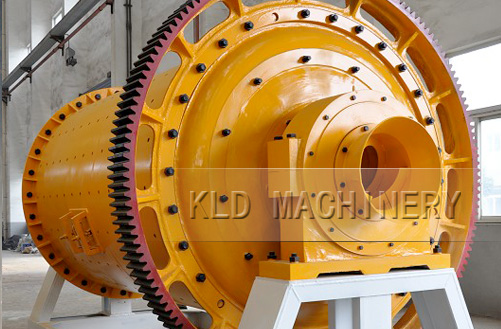

Energy-saving ball mill consist of feeding part, discharging part, rotary part, transmission part (reducer, small gear, motors, electrical control) and other major parts. Hollow shaft is steel castings, and the liner is detachable. Rotary gear is processed by casting hobbing. The cylinder is lined wear-resistant liner plate with good resistance to wear. This machine works stably.

Work Principle:
The main part of energy-saving ball mill is cylinder with small diameter and large length rotating slowly by the transmission device. The material is fed from the cylinder inlet and grinded by the impact of steel ball and ore and self-grinding. Due to the continuously feeding material, the pressure pushes material to the outlet and the grinded material is discharged from the cylinder outlet. In wet grinding, material is taken out; in dry grinding, the material is taken out by air. The grid installed in the outlet of mill is relied for forced discharge. Low pulp surface in cylinder reduces the ore over-grinding, and prevent the steel ball out. Under the same production conditions, production capacity of grid mill is larger than overflow mill’s. Both ends of the cylinder body adopt rolling bearing instead of the sliding bearing, which is more energy-saving.


Advantages:Inquiry > >

  1.Hollow shaft adopts steel casting, and inner plate can be changeable. It is easy to maintain.
  2.Big gear adopts casted rolling teeth, and inside the drum it has wearable liner and good abrasion performance.
  3.Spring energy-saving ball mill operates stably, save consumption, and has high efficiency.

Technical Parameters:Inquiry > >

Type Rotational speed
(r/min)
Balls weight
(t)
Feeding size
(mm)
Output size
(mm)
Capacity
(t/h)
Motor power
(kw)
Weight
(t)
Ф900×1800 42 1.4 ≤20 0.075-0.89 0.65-2 18.5 3.6
Ф900×2100 41 1.7 ≤15 0.075-0.83 0.7-3.5 15 3.9
Ф900×3000 41 2.7 ≤20 0.075-0.89 1.1-3.5 22 4.5
Ф1200×2400 36 3.5 ≤25 0.075-0.6 1.5-4.7 30 11.5
Ф1200×2800 31 6.8 ≤25 0.075-0.6 1.5-5 37 13
Ф1200×4500 32 5.5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 31 6.8 ≤25 0.074-0.4 2-7 75 17
Ф1500×4500 27 10.5 ≤25 0.074-0.4 3.5-8 110 21
Ф1500×5700 27 15 ≤25 0.074-0.4 3.5-10 130 24.7
Ф1830×3000 26 13 ≤25 0.074-0.4 4-12 160 28
Ф1830×3600 26 15 ≤25 0.075-0.4 5-13 160 33.5
Ф1830×4500 26.5 17 ≤25 0.075-0.6 5.5-20 185 35
Ф1830×7000 26 25 ≤25 0.074-0.4 6.5-22 210 36
Ф2100×3600 24 21 ≤25 0.074-0.4 6.5-22 185 46.8
Ф2200×5500 21 30 ≤25 0.074-0.4 10-20 245 48.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 52.8
Ф2200×7500 21 33 ≤25 0.074-0.4 16-30 380 56
Ф2400×3000 20.6 30 ≤25 0.075-0.4 15-50 245 59
Ф2400×4500 21 33 ≤25 0.074-0.4 15-60 380 65
Ф2700×3600 20.6 39 ≤25 0.074-0.4 20-70 400 91.3
Ф2700×4000 20.7 40 ≤25 0.074-0.4 20-80 400 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 20-90 430 102
Ф3200×4500 18 65 ≤25 0.075-0.4 According to different technology 800 137
Ф3600×4500 17 90 ≤25 0.074-0.4 According to different technology 850 158
Ф3600×6000 17 110 ≤25 0.074-0.4 According to different technology 1250 175
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Ф4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Ф4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
