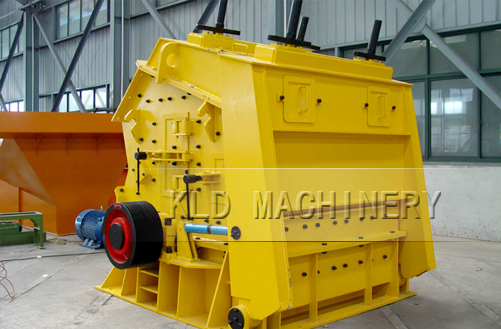

Impact Crusher

Impact Crusher

Specifications:644-2000mm
Maximum feed length:100-500mm
Throughput:10-350t/h
Power:30-375kw
The impact crusher is widely used in the first and secondary crushing process to procss a variety of rocks and mineral ores. It is featured with high crushing ratio,large output,low costs and other advantages.

Introduction

Impact crusher, which can also be called impact breaker or impact crushing machine The final products of impact crusher are of good cubic shapes
which is widely used  for the artificial aggregate production and ore crushing in railway, highway and
 construction industry. our impact crusher is an optimized crushing machine after adopting advanced techniques at home and abroad .

Working principle:


driven by the motor, the high-speed rotation of the rotor of the impact crusher material into the plate hammer on the rotor impact crusher, and then be countered to the liner again broken.
This process works again and again until materials being required size



Features


1. Multi-cavity uniform crushing,suitable for hard material
2.new wear-resistant material of the plate hammer, counterattack plate and liner last longer;
The gap between impact plate and plate hammer can be adjusted, we can control discharging  particle.
3.Specially designed tooth impact plate,strong impact force.
4.Crushing function is overall, high efficiency, non-key connected and high comprehensive benefits
5.Cubic shape nesting particle size adjustable


Advantages:Inquiry > >

  1.Big feeding port and high crushing cavity, it can suit for hard material and final product has little rock floor.
  2.The gap between impact plate and plate hammer can adjust, we can control discharging particle, and the particle shape is good.
  3.The structure is compact, rigidity is strong, and the rotor has big rotational inertia.
  4.High alloy plate hammer, shock resistance, abrasion assistance and strong impact force.
  5.Non-key connected, easy maintenance.
  6.Crushing function is overall, the efficiency is high, less wear-parts and high comprehensive benefits.



Technical Parameters:Inquiry > >

Model Specifications
(mm)
Inlet size
(mm)
Maximum feed length
(mm)
Throughput
(t/h)
Power
(kw)
PF-0607 Φ-644×740 320×770 100 10-20 30
PF-0807 Φ-850×700 400×730 300 15-30 30-45
PF-1008 Φ-1000×800 400×830 300 30-50 37-55
PF-1010 Φ-1000×1050 400×1080 350 50-80 55-75
PF-1210 Φ-1250×1050 400×1080 350 70-120 110-132
PF-1212 Φ-1250×1250 400×1300 350 100-150 132-160
PF-1214 Φ-1250×1400 400×1430 400 130-180 160-200
PF-1315 Φ-1320×1500 860×1520 500 160-250 180-260
PF-1320 Φ-1320×2000 860×2030 500 300-350 300-375
